CHANGING LENSES

To remove the lens from the camera

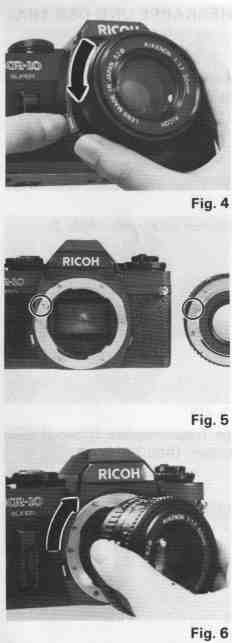

1. Keep the Lens Release Lever pressed in, and turn the lens in the direction of the arrow. (counterclockwise) (Fig. 4)

1. Line up the red dot on the lens mount with the matching red dot on the ca mera body, or alternatively, match the red ( I ) mark on the Depth of Field Scale to the red dot on the camera body. (Fig. 5)

2. When the lens has engaged, turn it in the direction of the arrow until it clicks into place. (clockwise) (Fig. 6)

* For convenience when mounting the lens in the dark, you can line up the lens Locator Node with the Lens Re lease Lever.
